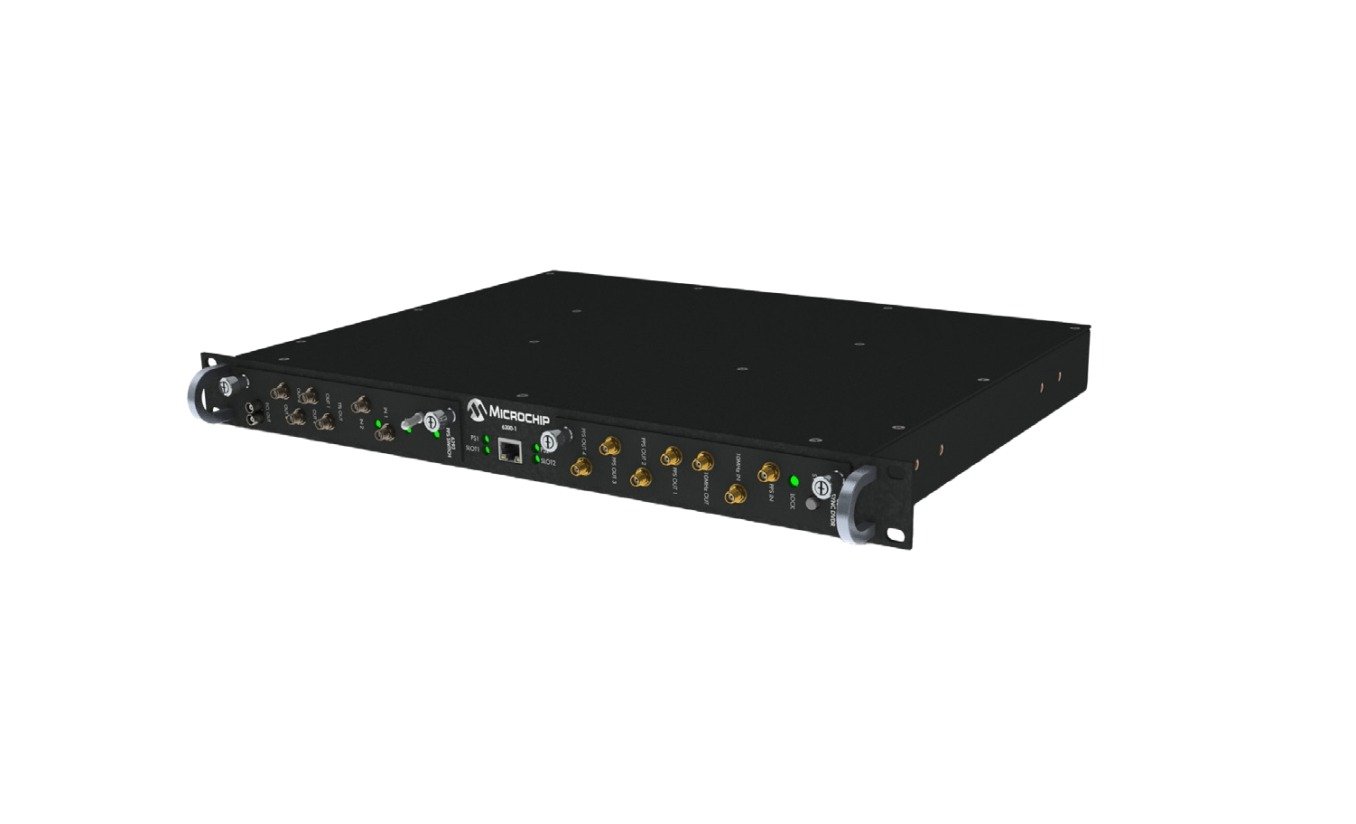

6300 Series Modular Signal Switching and Distribution System

The 6300 Series is a modular and intelligent switching and distribution system that provides ultra-low-noise phase performance for demanding ground station, metrology and national time scale applications. The 6300 Series’ modular and flexible distribution architec ture enables a wide range of signal formats-low-noise sine waves, IRIG timecodes or pulse formats-all from a single chassis. The 6300 Series is available in both a 1U and 4U rack-mount chassis. All plug-in modules are hot swappable and interoperate in both chassis types. The robust design includes redundant hot-swappable power supplies that can be configured for AC/AC, DC/DC or AC/DC.

Key Features

• Low additive phase noise
• High channel isolation
• Modular design enables variety of signal formats
• LED status indicators for all inputs and outputs
• Scalable to hundreds of outputs
• Ethernet interface for management and alarms
• Redundant AC or DC power or combination of AC and DC
• Hot-swappable modules and power supplies
